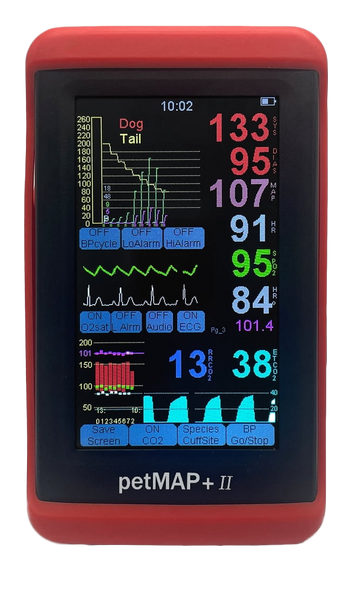

petMAP+ II with SpO₂ (Nonin) - veterinary blood pressure monitor for complete monitoring of MAP, heart rate, temperature and saturation

The petMAP+ II is an innovative portable blood pressure monitor specifically designed for veterinary use. It combines the functionality of non-invasive blood pressure (NIBP), heart rate (HR), body temperature, and oxygen saturation measurement using the SpO₂ Nonin sensor in animals of all sizes. Reliability, accuracy, and mobility make this device an ideal choice for clinics, on-site visits, and emergency situations.

Advantages and features of petMAP+ II

• Proven PPO (PetMAP Proprietary Optimizations) technology - optimizes parameters for the type of animal and cuff position for maximum accuracy.
• SpO₂ Nonin sensor - provides reliable saturation measurement and plethysmogram display.
• Temperature monitoring with a rectal or esophageal sensor.
• Ability to connect CO₂ and ECG modules (optional).
• Touchscreen display with no menu - simple and quick to use interface.
• Real-time oscillometric curve - additional visualization for accurate blood pressure analysis.
• Automatic measurement mode with a preset repetition cycle.
• SD memory card - saving screenshots, graphs and dynamics data.
• Autonomous operation from four replaceable AA batteries (NIMH or alkaline).
• Optional accessories: rod mount and case (optional).

Specifications

• Blood pressure range:
  • Systolic blood pressure: 40 - 265 mmHg.
  • Mean (SBP): 30 - 200 mmHg.
  • Diastolic blood pressure: 25 - 195 mm Hg.
• Heart rate: 40 - 240 beats per minute (via BP or SpO₂)
• SpO₂: ± 3% in the range of 80 - 100%
• Temperature: ±2°C in the range 29 - 46°C
• Dimensions: 152.4 mm x 81.28 mm x 31.75 mm (HxWxD)
• Weight: 450 g (with batteries)
• Power supply: 4 AA batteries (nickel-metal hydride or alkaline)

ECG module petMAP+ II ECG:

Displays ECG waveform and heart rate 3-electrode system; lead II for heart rate Oesophageal catheters are available. 2 sizes. Displays ECG, heart rate and temperature. Catalogue no: 9026. Heart rate range: 20-260 beats per minute. Heart rate accuracy: 3% + 1 decimal place.

The petMAP+ II ETCO2 module:

Widely used system. Provides a capnograph, numerical CO2 data (ETCO2 - end-tidal carbon dioxide concentration, Insp CO2 - inspired carbon dioxide, Rt CO2 - expired carbon dioxide) and CO2 respiratory rate. Includes large and small airway adapters. Catalogue no: 9027. Heart rate range: 20-260 beats per minute. Heart rate accuracy: 0-40 ± 2 mm Hg. 41-70 ± 5% of readings. 71-100 ± 8% of readings. Respiratory rate accuracy: ± 2%; ± 1 bpm. Respiratory rate range: 40-140 beats/min.

Available accessories

Mounting on the bar №: 9029	Case №: 9028 (black, grey, blue or red)	Rectal temperature sensor №: 8041

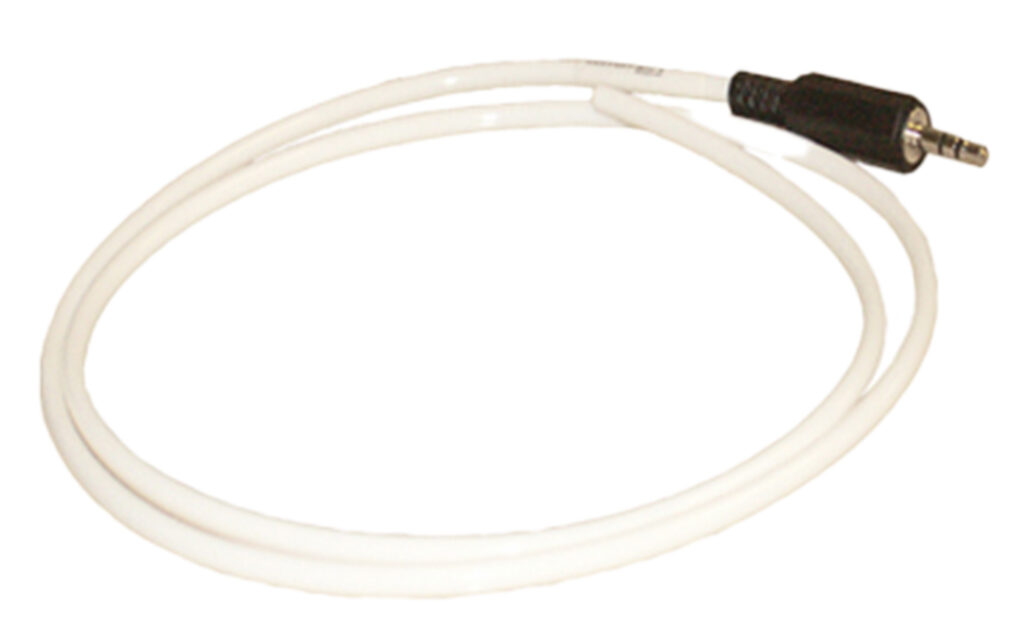

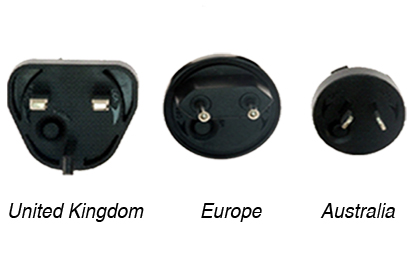

Стравохідний температурний датчик №: 8040	Oesophageal temperature sensor №: 9014	International standard adapter plugs №: 9008
Catheter for cats (ECG and Temp.) №: 3205-001	Catheter for dogs (ECG and Temp.) №: 3007-0001	Set of 3 lead wires №: 9030

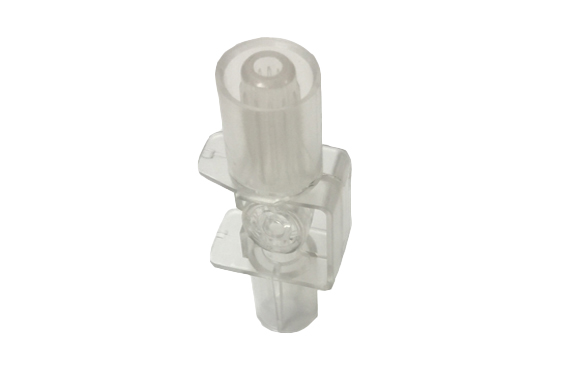

Non-invasive Nonin SpO2 sensors to choose from №: 9018 (Reflective sensor); №: 9019 (Small flexible sensor)	Large CO2 airway adapter №: 9034	Small CO2 airway adapter №: 9035

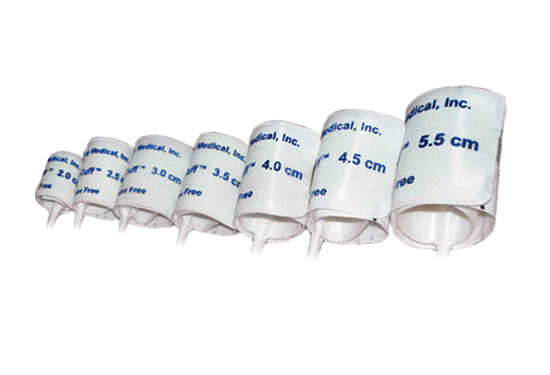

Cuffs for animals CritterCuff

Cuffs for measuring blood pressure	Size	№
	2,0 cm 2,5 cm 3,0 cm 3,5 cm 4,0 cm 4,5 cm 5,0 cm	8050 8051 8052 8053 8054 8055 8056
CritterCuff animal cuffs complete with petMAP+ II system
	5,5 cm 6,5 cm 8,0 cm 10,0 cm 13,0 cm	8057* 8058* 8059* 8060* 8061*
* Sold separately, not included in the petMAP+ II system

RamseyCuff

Sold separately, not included in the petMAP+ II system

petMAP+ II is the ideal solution for daily animal monitoring that combines compactness, functionality and veterinary specialization. Order official petMAP equipment with a quality guarantee at veteq.group.
