Kaixin K10 Portable Veterinary Ultrasound System for Companion Animals

Kaixin K10 is a portable veterinary ultrasound diagnostic system designed for companion animal practice, small and medium-sized patients, clinical examinations and selected field applications depending on the connected probe. The system combines a compact tablet-style design, battery-powered operation, Wi-Fi data transfer and compatibility with multiple veterinary probes.

The K10 is suitable for veterinary clinics, mobile veterinarians, training centers and mixed practices that need a practical ultrasound system for daily diagnostics. It supports image and data transfer to Phone/Pad and PC ultrasound workstation, helps manage examination results and includes tools for obstetrical records and diagnostic list management.

Compact ultrasound system for daily veterinary workflow

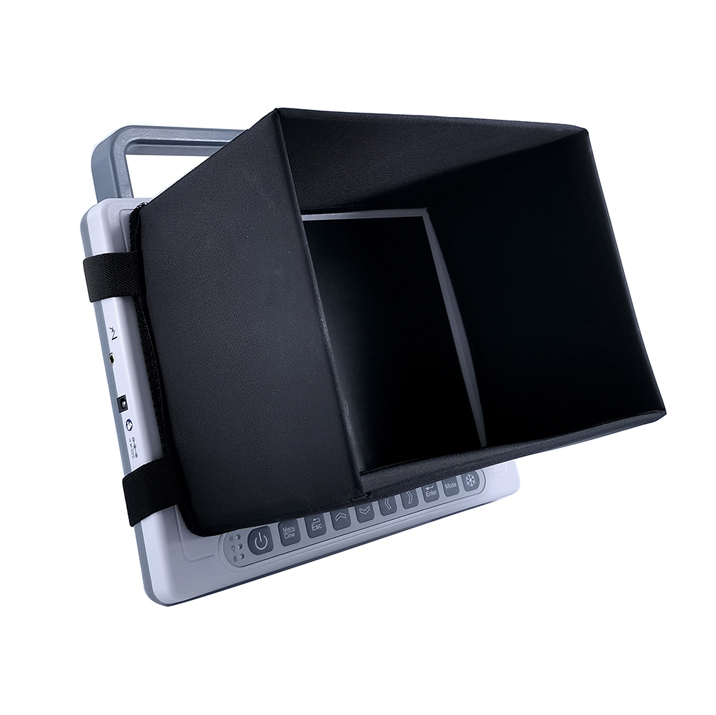

Kaixin K10 features a tablet-style format with a slim 40 mm body, making the system convenient for use in examination rooms, training environments and mobile practice. The protective case with strap supports safe handling and transportation during everyday clinical work.

With Wi-Fi connectivity, K10 can transfer images and data to Phone/Pad or a PC ultrasound workstation. This helps simplify result review, image storage, patient follow-up and diagnostic information management.

• compact tablet-style ultrasound system;
• Wi-Fi connection with Phone/Pad and PC workstation;
• OB record for detailed obstetrical examination documentation;
• Diagnosis List for examination tracking and batch management;
• built-in large-capacity lithium battery.

Key advantages of Kaixin K10

Main features

• Portable veterinary ultrasound diagnostic system.
• Manufacturer category: Companion Animal.
• Compact tablet-style design for convenient daily diagnostics.
• Wi-Fi connection with Phone/Pad and PC ultrasound workstation.
• Image and data transfer for review, storage and management.
• OB record for detailed documentation of obstetrical diagnostic results.
• Diagnosis List for examination quantity tracking and batch management.
• Support for saving, editing images and generating reports.
• Compatibility with different veterinary probes depending on the diagnostic task.
• Built-in large-capacity lithium battery.

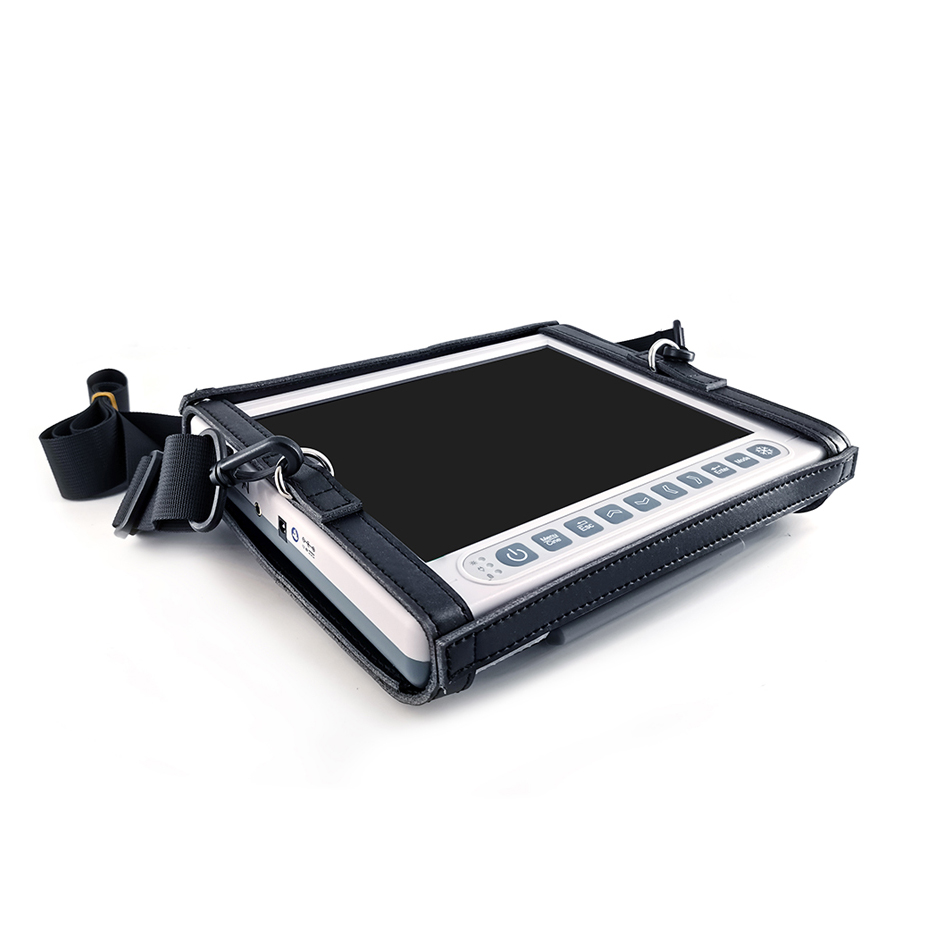

• Protective case and strap for easier transportation and operation.

Applications

Kaixin K10 is designed for ultrasound diagnostics in veterinary practice, with a primary focus on companion animals and small to medium-sized patients. Its functionality can be expanded by selecting suitable probes for specific clinical and field applications.

The system can be used for internal organ examinations, superficial structure assessment, obstetrical examinations, fetal evaluation, reproductive monitoring and basic clinical ultrasound tasks. The portable format makes K10 convenient for both stationary clinic use and mobile examinations.

Measurements, calculations and reports

• Standard measurements: distance, perimeter, area, volume and other basic parameters.
• Cardiology measurements: depth, slope, heart rate and cardiac cycle period.
• Obstetrical measurements for pregnancy term estimation and approximate date calculation.
• Obstetrical report and OB record for documenting diagnostic results.
• Diagnosis List for tracking performed examinations.

Technical specifications

Basic package

• Kaixin K10 ultrasound system.
• Microconvex probe 5.0–9.0 MHz.
• 12 V power adapter.
• Built-in lithium battery.
• Aluminum carrying case.
• Case strap.
• User manual.

Compatible probes

The functionality of Kaixin K10 depends on the selected probe. The basic package includes a microconvex probe, while additional veterinary probes can be used for other clinical and field diagnostic tasks.

	Microconvex probe 5.0–9.0 MHz included in the basic package Suitable for internal organ examinations, superficial structures, fetal evaluation and cardiac studies in pigs, sheep, dogs, cats, rabbits, foxes, small and medium-sized animals, birds and medium-sized fish.
	Convex probe 2.0–5.0 MHz Used for internal organ examinations, superficial structures and fetal evaluation in pigs, sheep, dogs, cats, rabbits, foxes, medium-sized animals and large fish.
	Linear probe 6.5–9.5 MHz Designed for superficial organs, vessels and tendons in cattle, pigs, sheep, goats, dogs, cats, rabbits, foxes, small and medium-sized animals, birds and medium-sized fish.
	Linear rectal probe 6.5–9.5 MHz Used for intracavitary examinations of organs and fetus in cows, horses, llamas and other large animals.
	Convex rectal probe 2.0–5.0 MHz Designed for intracavitary examinations of organs and fetus in cows, horses, llamas and other large animals.
	Linear probe 3.5L160E2 2.0–5.0 MHz Used for examination of intramuscular fat percentage and subcutaneous fat in cattle, sheep and pigs.

Additional accessories

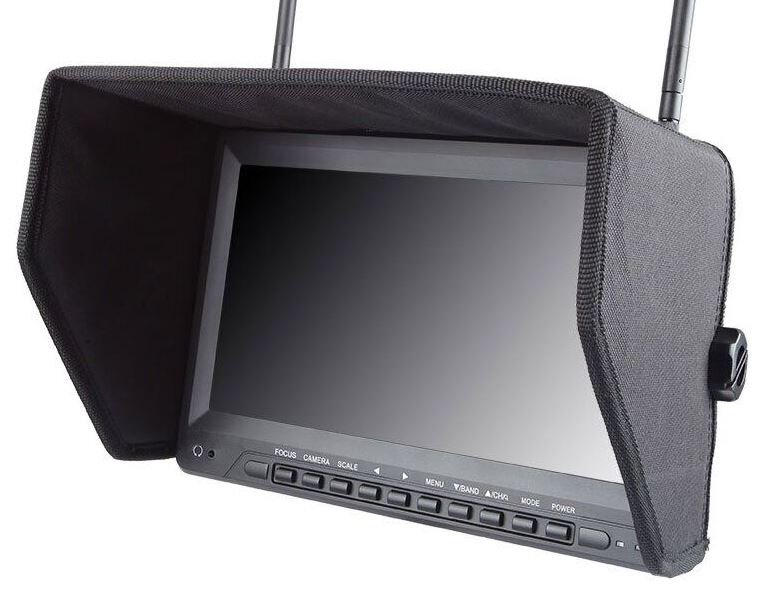

	External monitor Used to receive the image from the ultrasound system. Wireless image transfer is possible at a distance of up to 10 meters depending on operating conditions.
	Applicator for rectal probe Used as an extender for linear and convex rectal probes when working with large animals.
	Additional lithium battery HYLB-1614 Helps extend autonomous operation time during field examinations or a long working day.

Kaixin K10 is a portable veterinary ultrasound system for companion animal, clinical and mobile practice. It combines compact design, autonomous operation, Wi-Fi data transfer, obstetrical records and compatibility with different veterinary probes.
