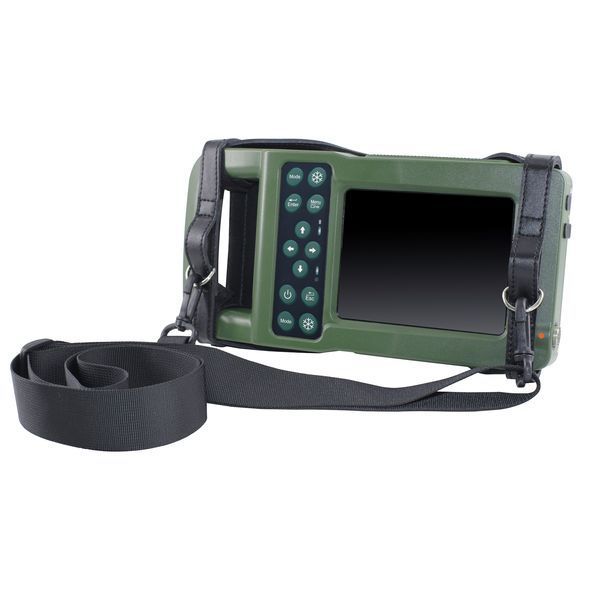

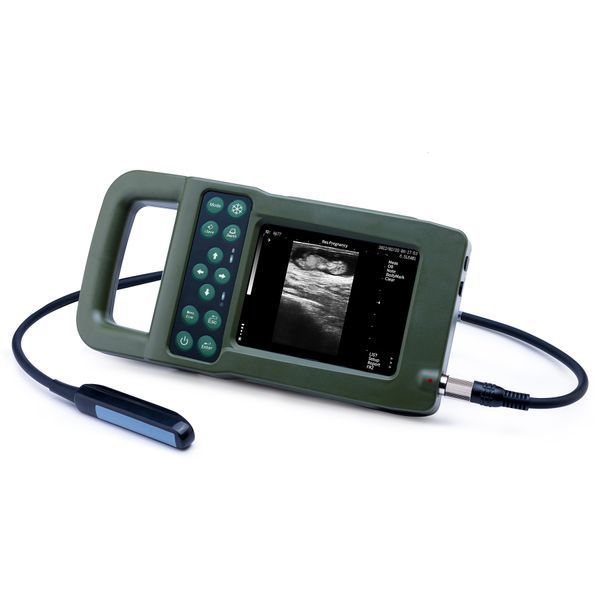

Portable Veterinary Ultrasound Scanner KX5600F, Kaixin
KX5600F is a fully digital portable ultrasound scanner designed for veterinary applications. The device combines reliability, mobility, and functionality, making it an ideal solution for fieldwork and farm use.
Suitable for: cattle, pigs, horses, sheep, goats, dogs, cats, and other animals.
Professional diagnostics in any conditions

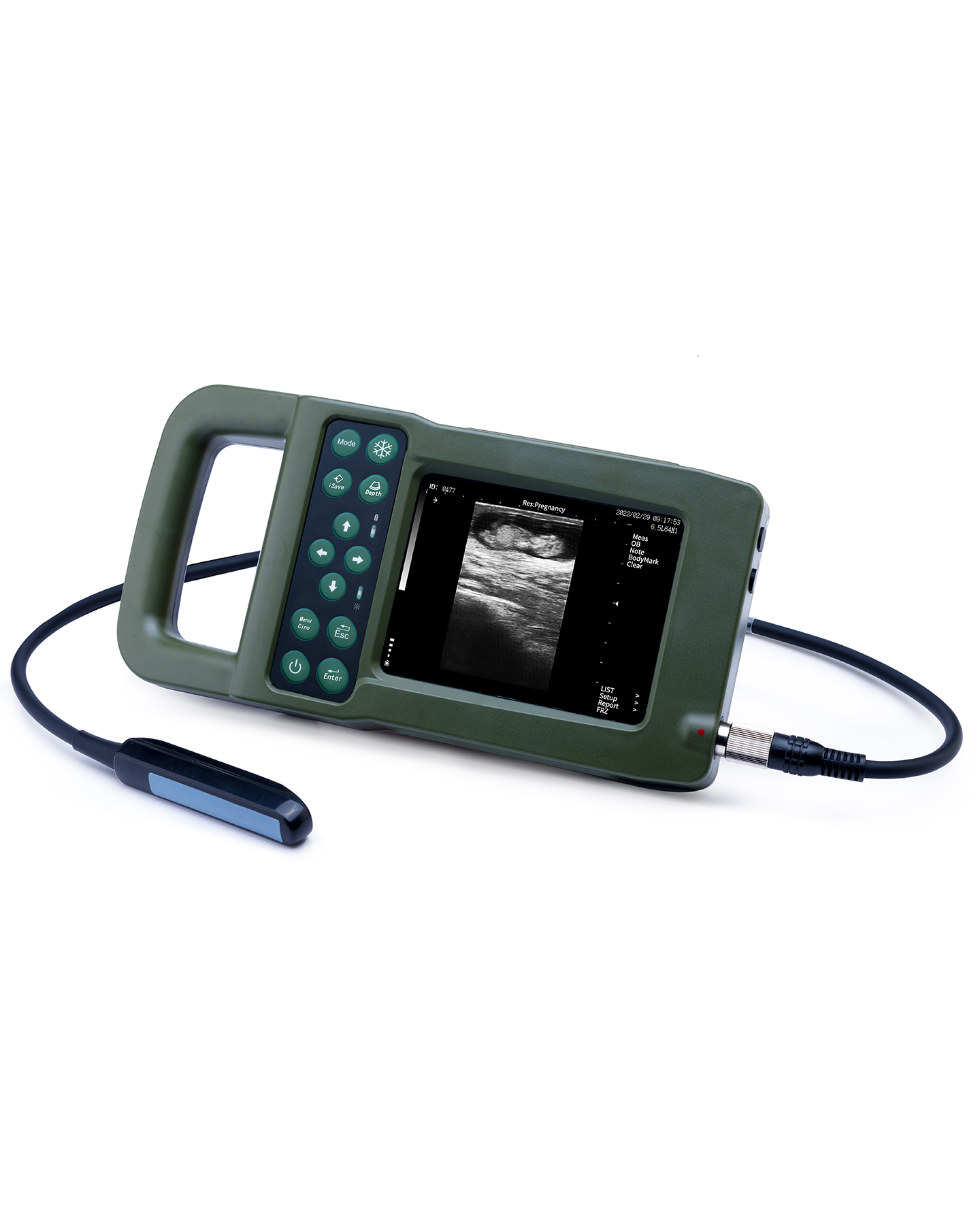

- 5.6” LCD display — clear imaging in any environment
- Lightweight design — ideal for mobile use
- High-capacity Li-ion battery — up to 5 hours of operation
- Water-resistant housing — reliable in field conditions
- Replaceable probes — flexible application
- One-touch image saving — quick result capture
- 8 measurement grids — improved diagnostic accuracy
- Examination log — convenient animal tracking
- Efficient data management — optimized workflow
Key advantages
Mobility
Works anywhere:
on farms, in the field,
for mobile diagnostics
Functionality
5 scanning modes,
flexible settings,
accurate measurements
Efficiency
Fast image saving,
pregnancy analysis,
examination history tracking
Functionality and scanning modes
- Scanning modes: B, B/B, 4B, B/M, M
- Probe types: convex and linear
- Frequencies: 3.5 / 4.0 / 6.5 / 7.5 MHz (4-level adjustment)
- Scanning depth: up to 200 mm (8 levels)
- TGC: independent near and far field adjustment
- Dynamic range: 27–90 dB
- Image processing: filters, edge enhancement, frame correlation
- Display: 256 grayscale levels + 8 color modes
- Image rotation: vertical and horizontal
The device supports a full range of measurements: distance, area, volume, heart rate, along with advanced image post-processing capabilities.
Specialized veterinary functions
- Automatic pregnancy detection with reporting
- Obstetric calculations for cattle, horses, sheep, pigs, dogs, and cats
- Gestational age and due date calculation
- Lean meat analysis in pigs (percentage of lean meat)
- Automatic backfat measurement ruler for quick assessments
- 31 anatomical markers with probe positioning
- Cine Loop: up to 246 frames
- Memory: up to 420 images + up to 200 examination records
Technical specifications
| Type | Portable veterinary ultrasound |
| Display | 5.6” LCD |
| Modes | B, B/B, 4B, B/M, M |
| Depth | up to 200 mm |
| Memory | 420 images |
| Battery | 5200 mAh |
| Operating time | up to 5 hours |
| Dimensions | 285 × 143 × 35 mm |
| Weight | 1.1 kg |
Package includes
- Main unit

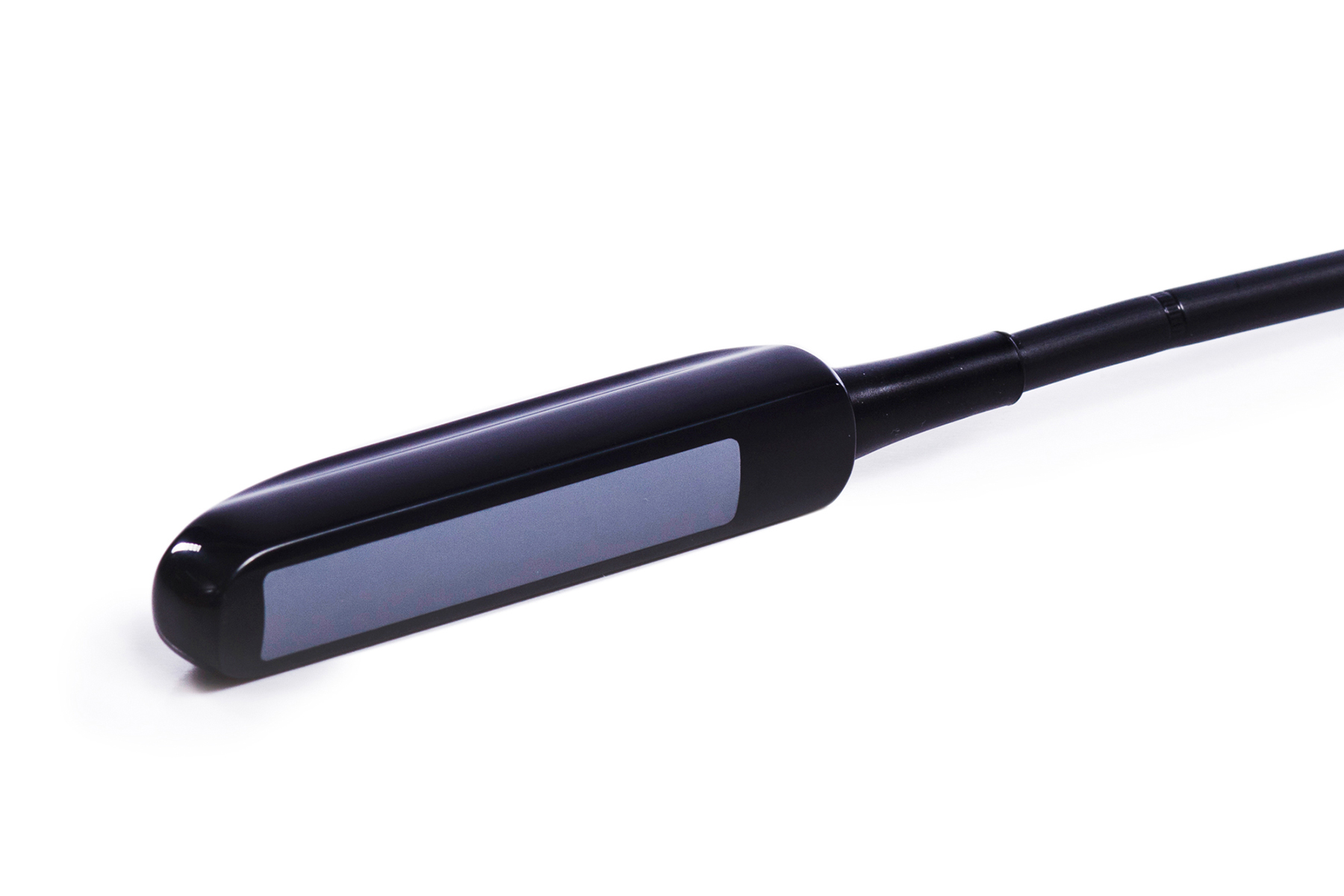

- Linear rectal probe 6.5 MHz
- Power adapter
- Probe holder

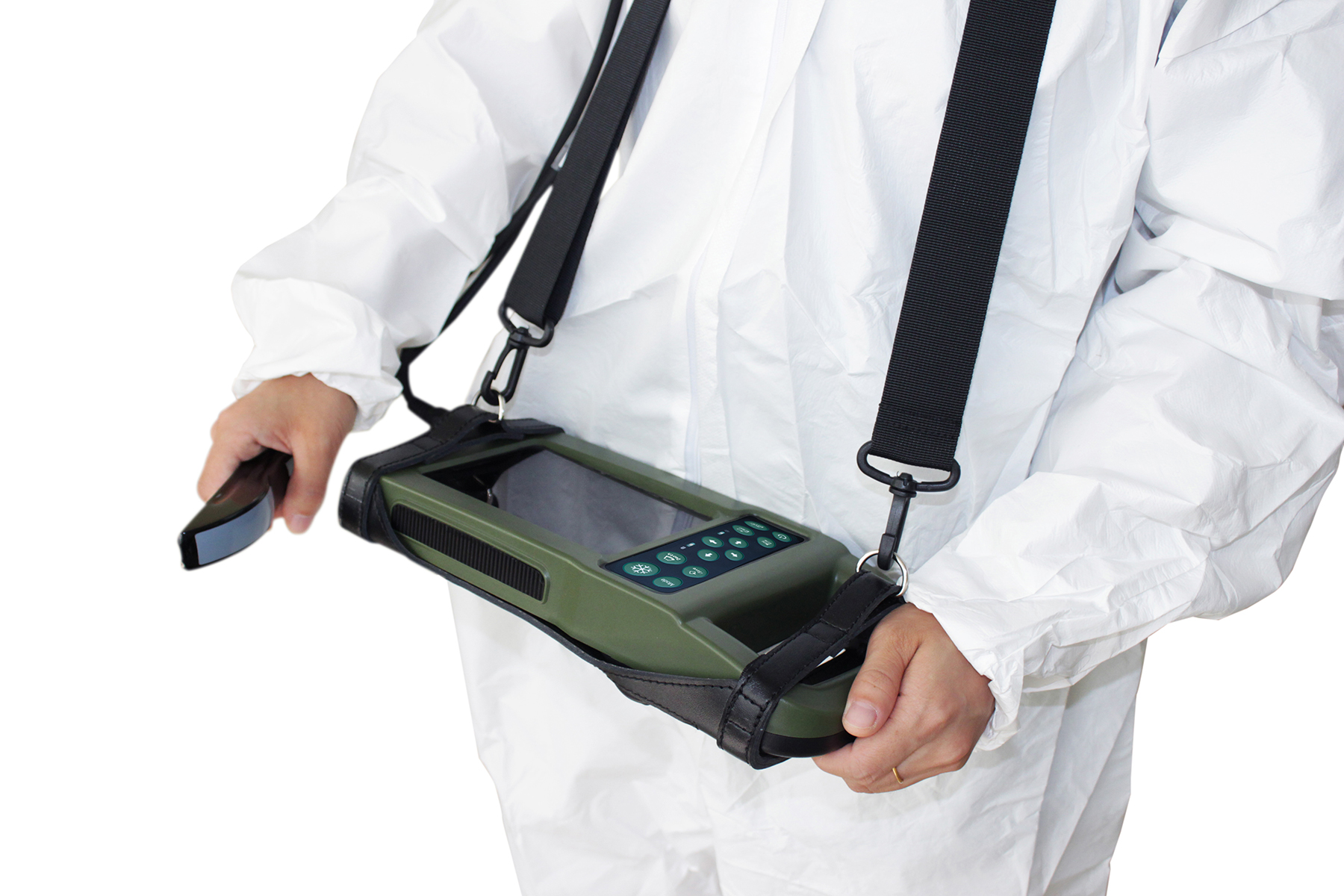

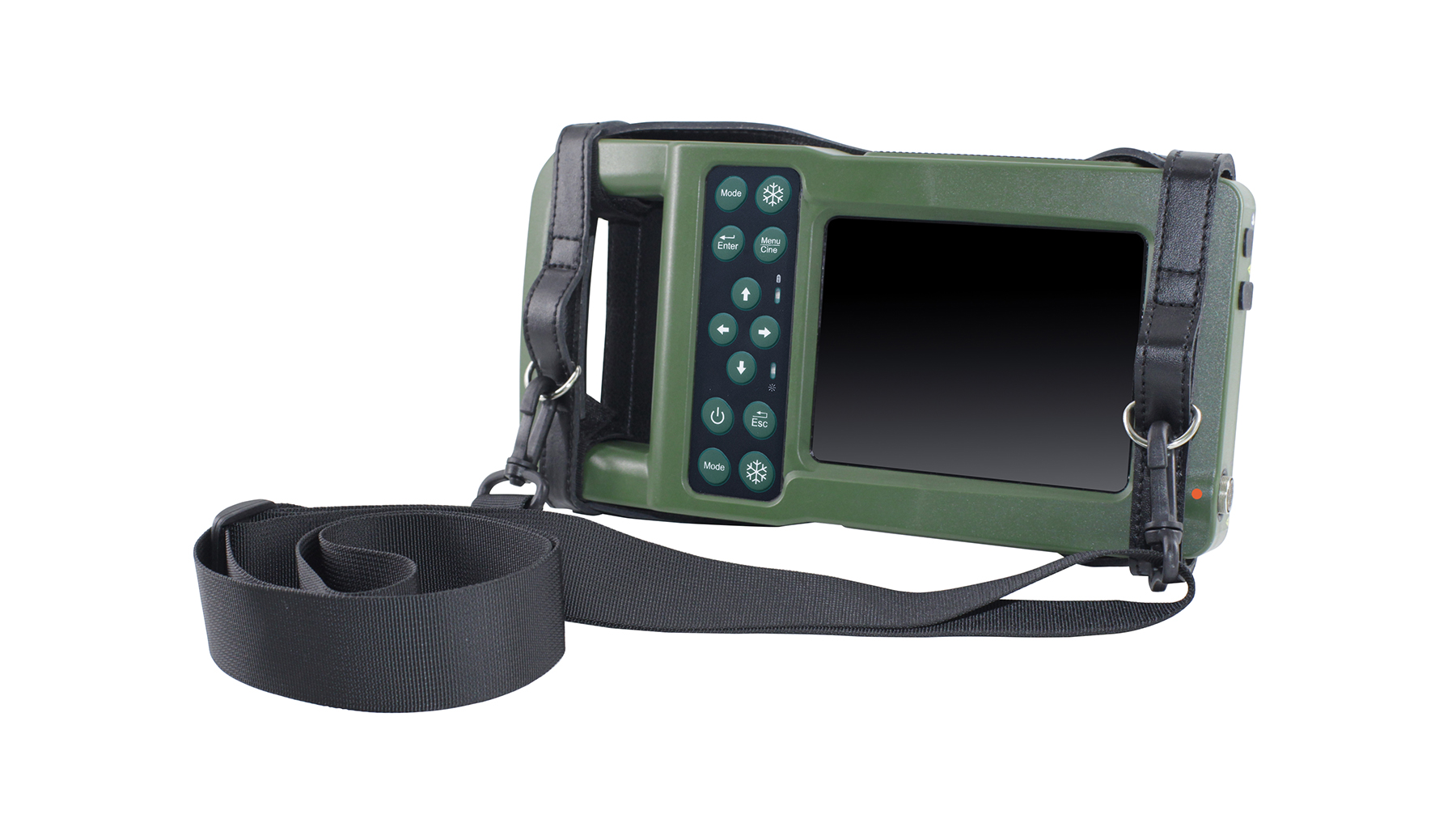

- Carrying strap

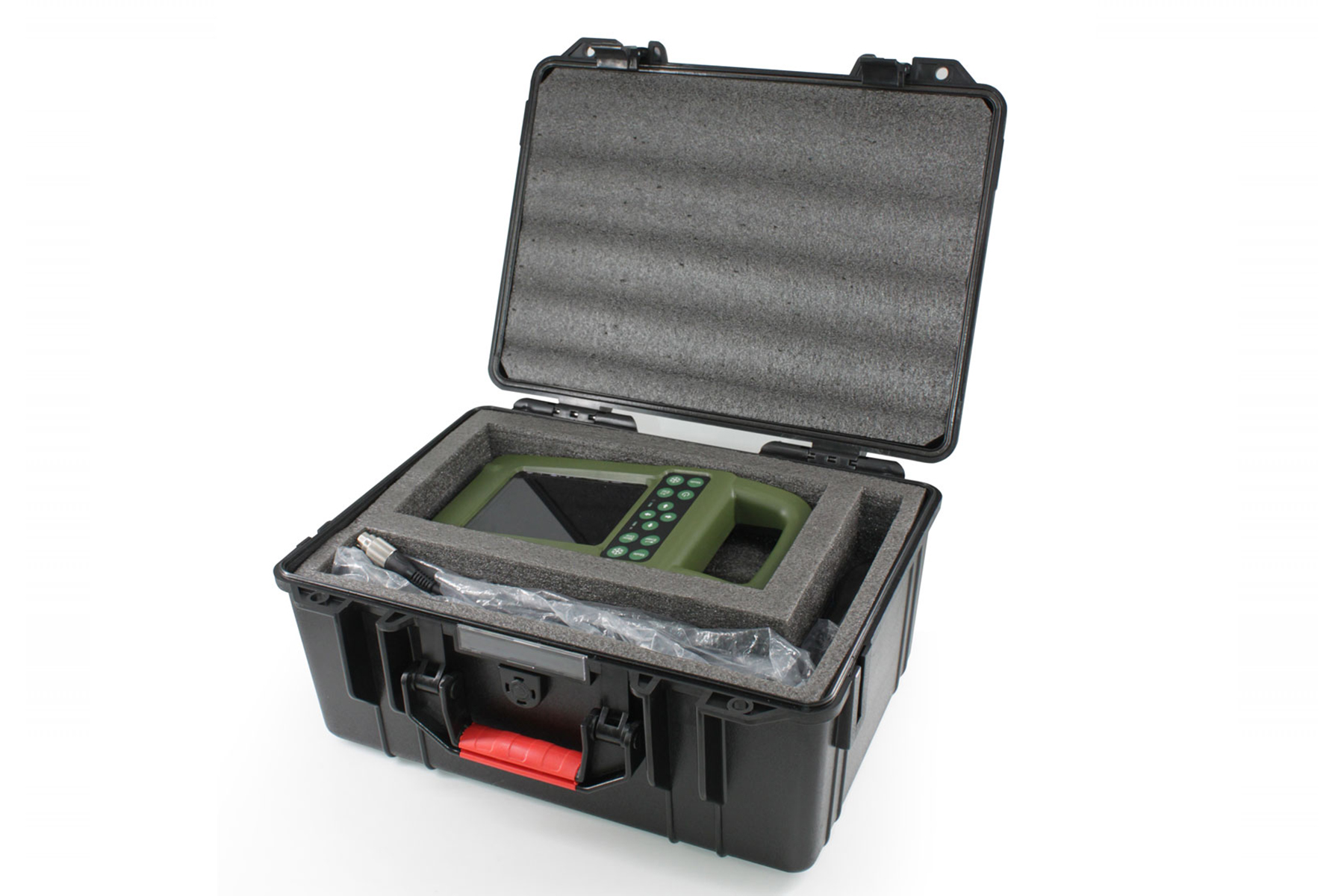

- Protective case

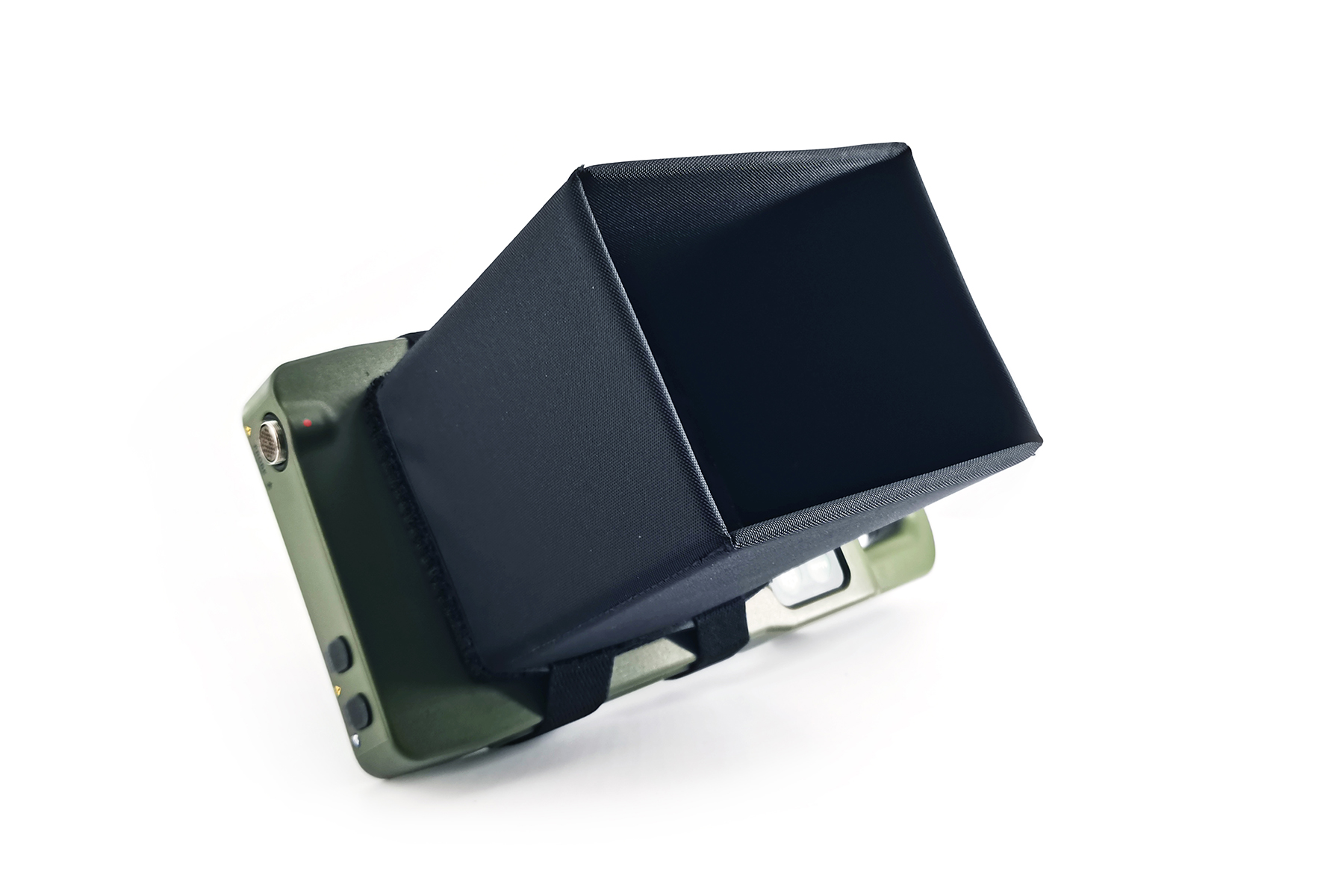

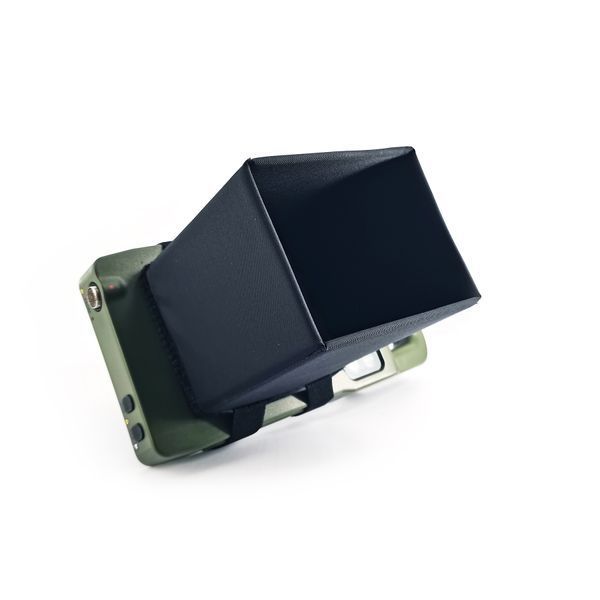

- Sunshade hood

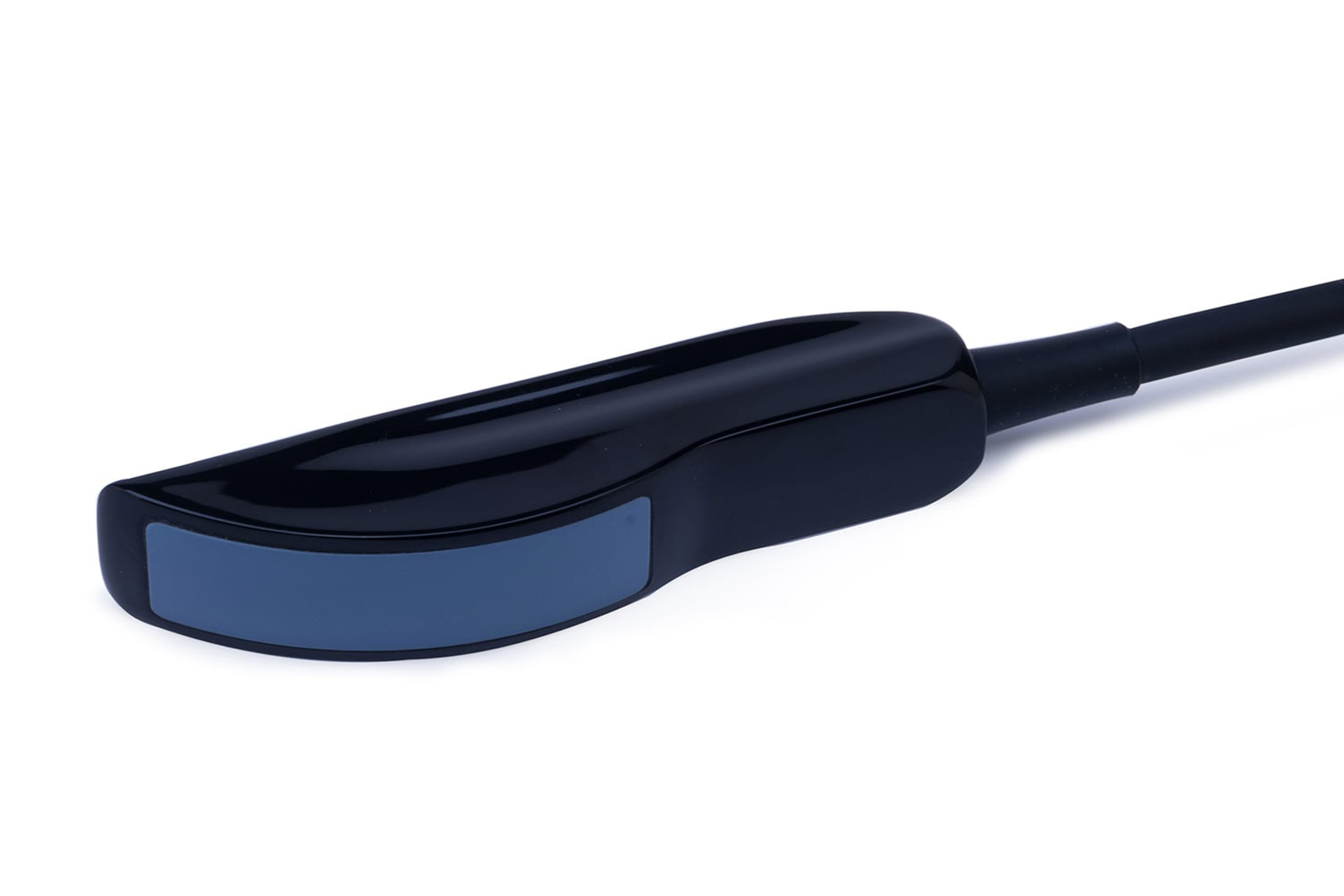

Interchangeable probes and accessories
KX5600F is an optimal choice for veterinarians and farms looking for a reliable, portable, and cost-effective ultrasound scanner for daily use.
