Kaixin KX V1 Portable Veterinary Ultrasound Scanner for Livestock and Large Animals

Kaixin KX V1 is a compact portable veterinary ultrasound scanner designed for livestock, large animal diagnostics and mixed veterinary practice. The system is suitable for use on farms, in reproduction units, on pastures, in veterinary clinics and directly at animal housing sites.

The KX V1 is developed as an updated solution based on the popular Kaixin KX5200 platform. It keeps a practical portable format while offering improved ergonomics, Wi-Fi data transfer, updated software and compatibility with multiple veterinary probes for different diagnostic tasks.

Portable ultrasound diagnostics for livestock and field practice

Kaixin KX V1 is designed for veterinarians and livestock specialists who need a lightweight, autonomous and practical ultrasound system for work directly near the animal. Its compact body, battery-powered operation and hand or chest mounting options make the scanner convenient for field examinations and daily farm diagnostics.

The device can be used for cattle reproduction, obstetrical examinations, large animal assessment, internal organ diagnostics, superficial structure evaluation, fetal monitoring and clinical veterinary tasks. The final diagnostic capabilities depend on the selected probe and application area.

Key advantages of Kaixin KX V1

Applications

• Cattle reproduction: obstetrics, uterine assessment, fetal development monitoring and pregnancy term estimation.
• Large animals: examination of cows, horses, llamas and other large animals with a suitable rectal probe.
• Swine, sheep and goats: reproductive monitoring, fetal assessment and routine farm diagnostics.
• Mixed veterinary practice: examination of internal organs, superficial structures, vessels, tendons and other areas depending on the probe type.
• Field work: mobile examinations, farm diagnostics and work in environments with limited access to mains power.

Main features

• Portable veterinary ultrasound scanner for livestock farms, clinics and mobile diagnostics.
• Updated model based on the Kaixin KX5200 platform.
• Support for basic imaging modes: B, 2B, B/M, M, A.
• 5.7" LCD display with high brightness, contrast and wide viewing angle.
• 256 gray shades for detailed ultrasound imaging.
• Frame rate up to 30 frames/sec.
• Support for multi-frequency veterinary probes.
• Single probe connector with automatic detection of the connected probe.
• 10 measurement options and 4 preset profiles.
• 2.4 GHz Wi-Fi for data transfer.
• Wireless image transfer to an external monitor up to 10 m depending on the configuration.
• Remote control included in the package.
• Body design that simplifies cleaning and hygienic treatment after use.

Measurements and calculations

Kaixin KX V1 supports standard measurement tools required for routine veterinary diagnostics and reproductive monitoring.

• Distance measurement.
• Perimeter measurement.
• Area measurement.
• Volume calculation.
• Obstetrical measurements.
• Pregnancy term estimation and approximate date calculation depending on the settings and examination protocol.

Technical specifications

Basic package

• Kaixin KX V1 console.
• Linear rectal probe 5.5–9.0 MHz.
• 12 V power adapter.
• Built-in lithium battery.
• Straps.

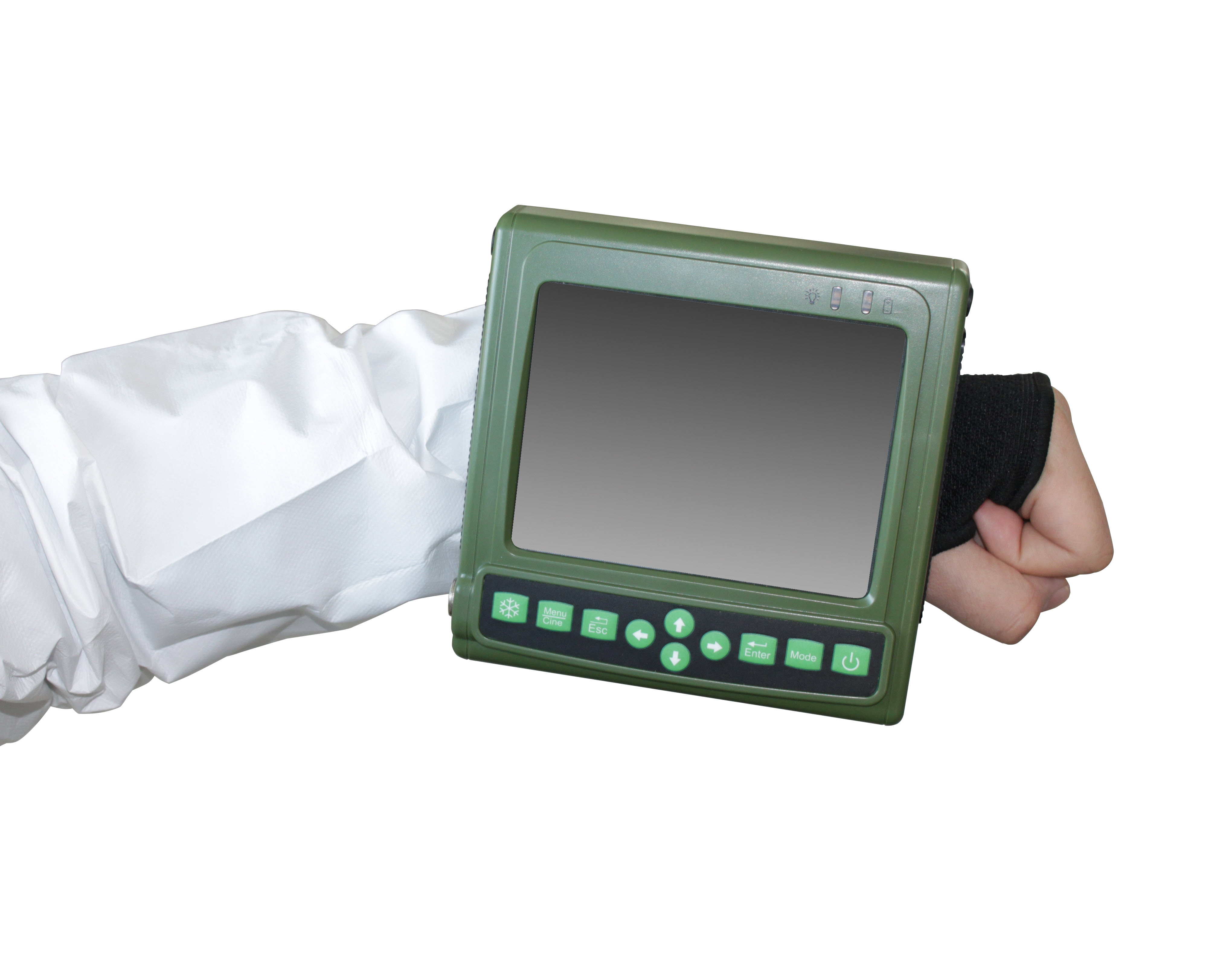

• Hand-mounting glove for the device.

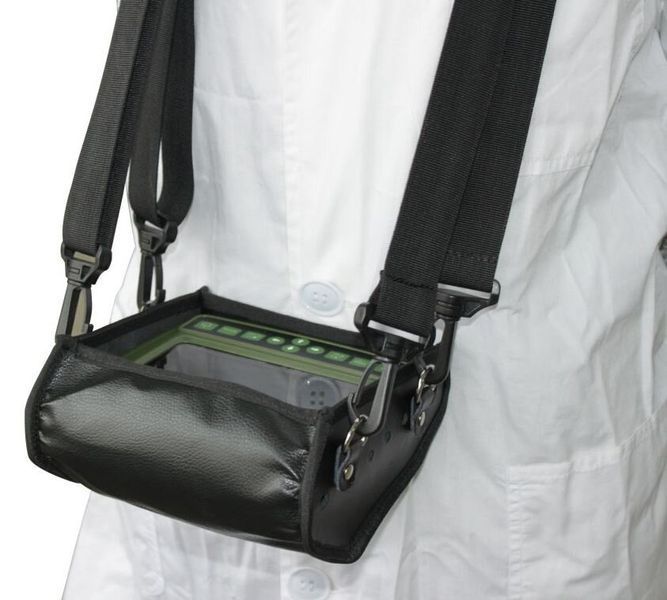

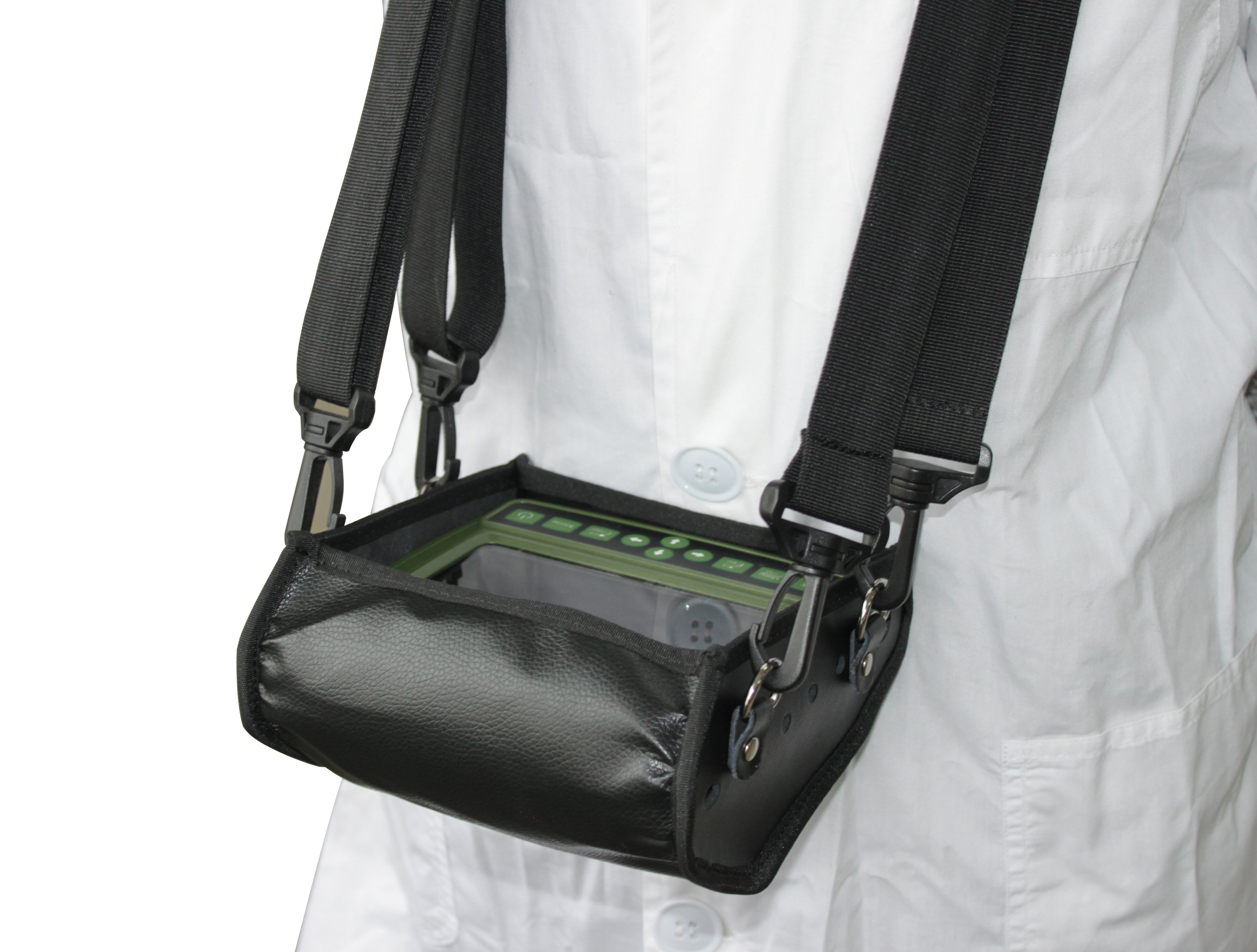

• Leather chest-mounting case for the device.
• Remote control.
• User manual.

Compatible probes

The functionality of Kaixin KX V1 depends on the selected probe. The scanner can be configured for cattle reproduction, large animal examinations, swine practice, small animal diagnostics and mixed veterinary applications.

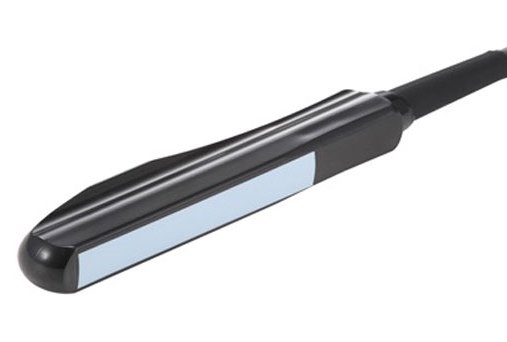

	Multi-frequency linear rectal probe 5.5–9.0 MHz Included in the basic package. Used for intracavitary examinations of organs and fetus in cattle, horses, llamas and other large animals.

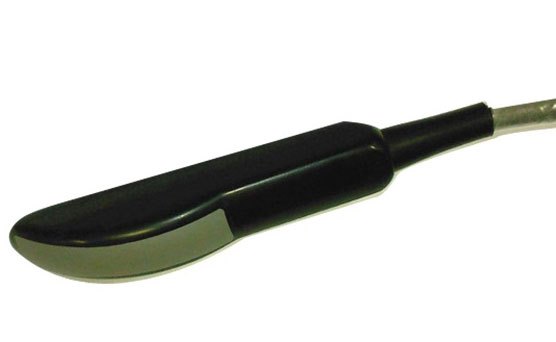

	Multi-frequency convex rectal probe 2.0–5.0 MHz Designed for intracavitary examinations of organs and fetus in cattle, horses, llamas and other large animals.
	Multi-frequency convex probe 2.0–5.0 MHz Used for examination of internal organs, superficial organs, fetus and cardiac studies in pigs, dogs, cats, rabbits, foxes, medium-sized animals and large fish.
	Multi-frequency linear probe 6.5–9.5 MHz Used for examination of superficial organs, vessels and tendons in cattle, pigs, sheep, goats, dogs, cats, rabbits, foxes, small and medium-sized animals, birds and medium-sized fish.
	Multi-frequency microconvex probe 5.0–9.0 MHz Suitable for examination of internal organs, superficial organs, fetus and cardiac studies in pigs, dogs, cats, rabbits, foxes, small and medium-sized animals, birds and medium-sized fish.

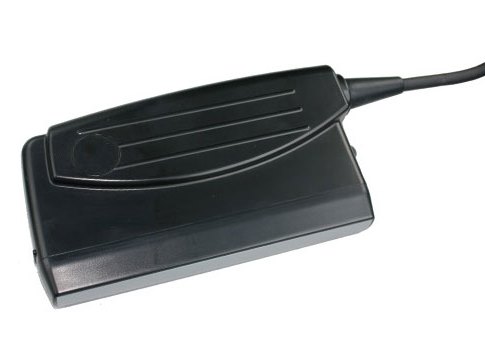

	Multi-frequency linear probe 3.5L160E2 2.0–5.0 MHz Used for examination of intramuscular fat percentage and subcutaneous fat in cattle, sheep and pigs.

Additional accessories

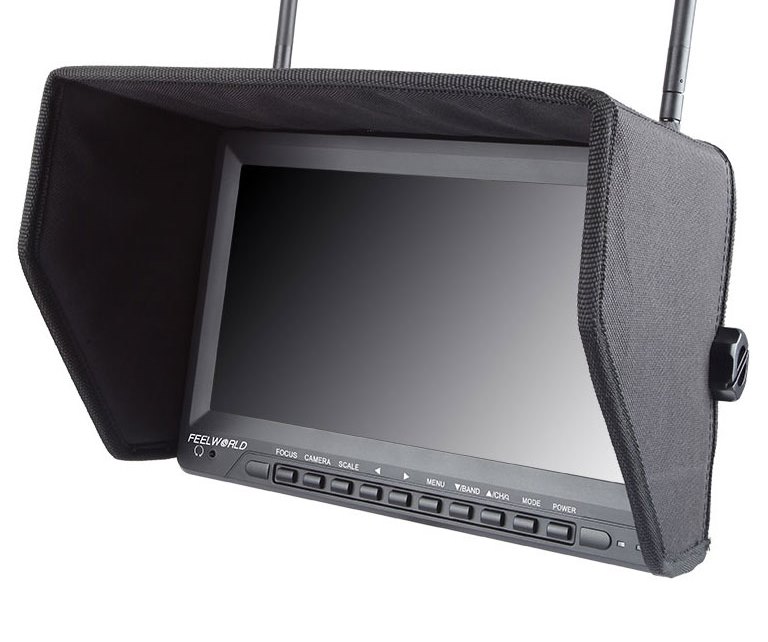

	External monitor Designed to receive the image from the ultrasound machine. Wireless image transfer is possible at a distance of up to 10 meters depending on operating conditions.

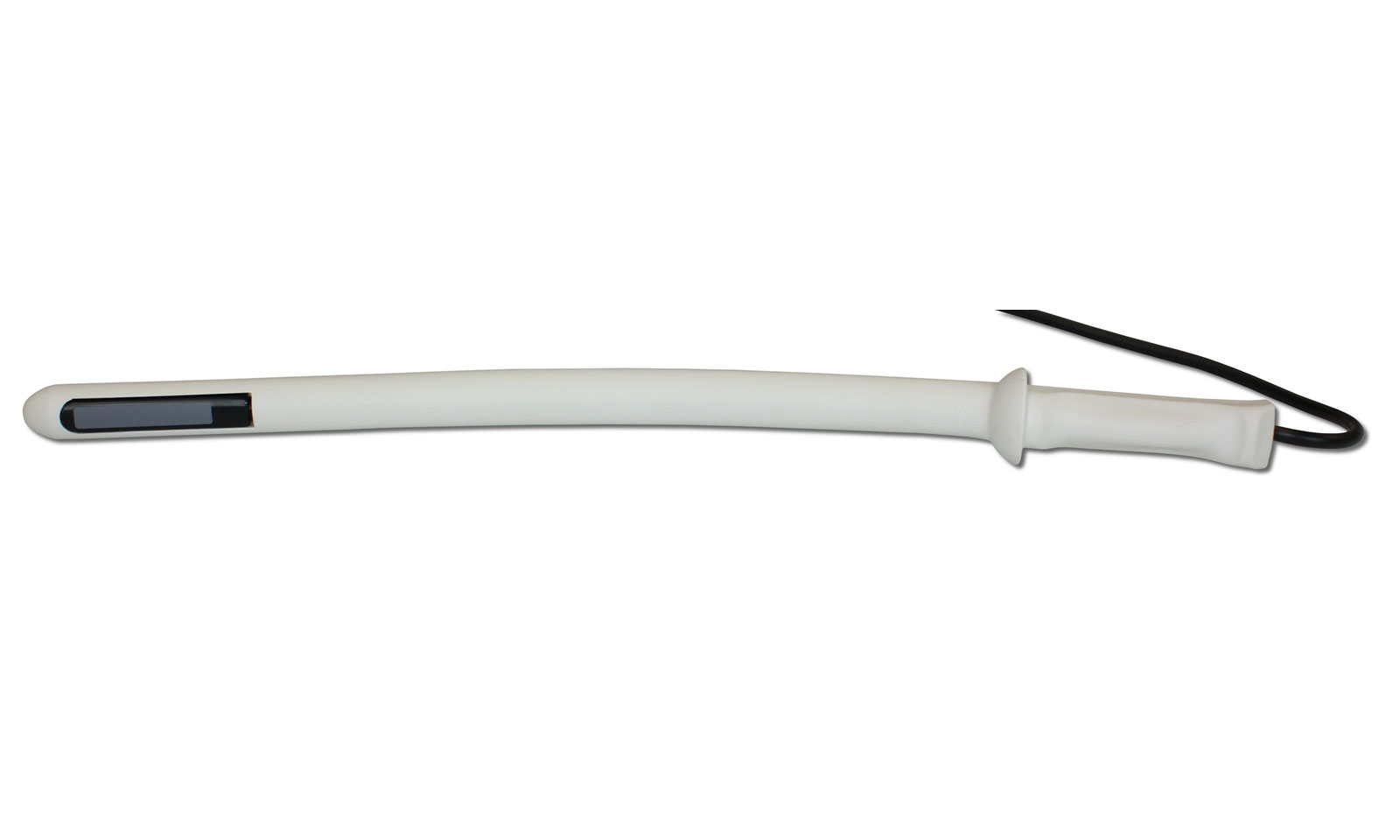

	Applicator for rectal probes Used as an extender for linear and convex rectal probes when working with large animals.

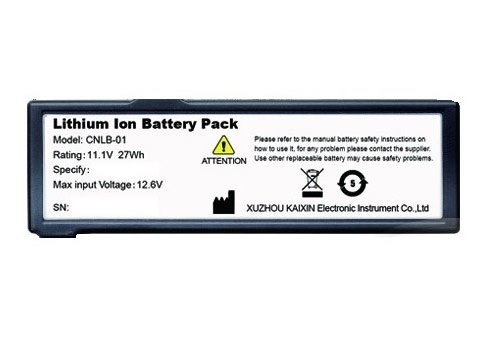

	Additional lithium battery Helps extend autonomous operation time during field visits, long examinations or work in facilities without quick access to mains power.

Kaixin KX V1 is a portable veterinary ultrasound scanner for livestock, large animals and mixed practice. It combines mobility, autonomous operation, support for different probes and modern data transfer capabilities.
