Ultrasound Machine for Livestock KX5600L, Kaixin

We present the fully digital ultrasound diagnostic instrument KX5600L, designed specifically for the needs of modern livestock farming. This compact and lightweight device will become a reliable assistant in diagnosing pregnancy, fertility and various conditions in pigs, sheep, dogs, cats and other animals.

Key Advantages and Features

High image quality: thanks to high brightness, contrast and a wide viewing area, you get a clear and detailed image even in external lighting conditions. The sunshade screen cover ensures comfortable outdoor operation.

Ergonomic design: the screen interface can be easily rotated, allowing the device to be used comfortably with either the right or left hand.

Accuracy and speed of measurements: KX5600L is equipped with a precise and easy-to-use intramuscular fat (IMF) measurement function, as well as 8 zoom levels for quick image evaluation. Automatic backfat measurement with a scale provides convenient and visual assessment of thickness.

Convenient documentation: the obstetrical report function allows easy management of recorded information about animal pregnancy.

Long autonomous operation: the high-capacity lithium battery provides continuous device operation for up to 5 hours.

Additional capabilities: partial image zoom and partial image coloring functions expand diagnostic possibilities.

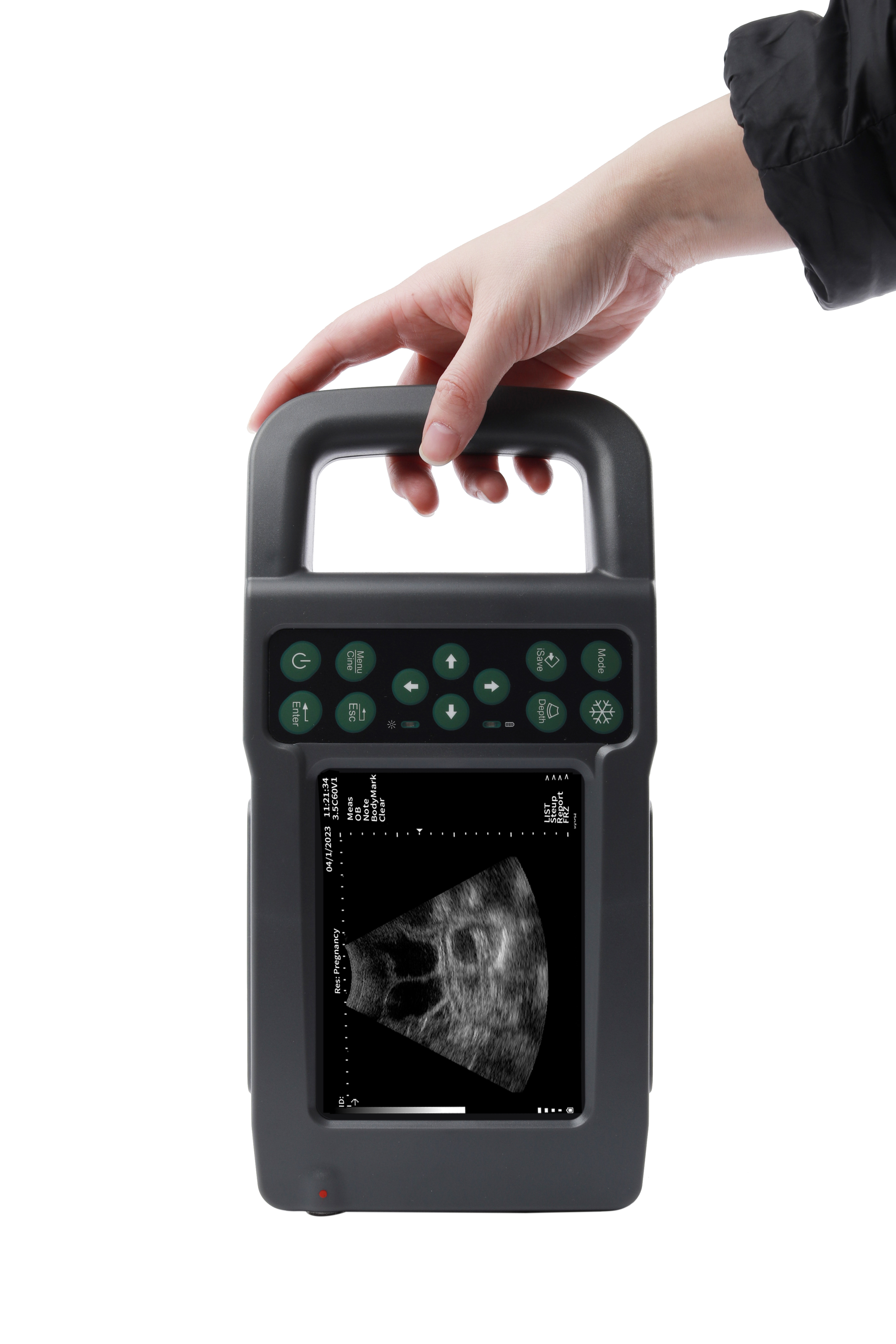

Hand holding the KX5600L ultrasound machine for pig farming

Technical Specifications and Functionality

System settings	Dual PAL/NTSC TV output system, power-saving mode, character brightness settings 160 / 192 / 224 / 255, button sound adjustment, 8 zoom levels.
Scanning modes	B, 2B, 4B, B/M, M.
Image adjustment	Brightness, contrast, near field 0–31 dB, far field 31 dB, overall gain 0–127 dB, dynamic range 27–90 dB.
Scanning depth	8 depth ranges, maximum scanning depth — 200 mm.
Image processing	Cropping, edge enhancement, 2 types of filters.
Additional functions	Partial zoom, partial image coloring, 180° image rotation.
Color modes	8 color modes, including black and white.
Intelligent adjustment	Focus position adjustment.
Automatic measurements	Automatic backfat measurement.
Body marks	38 body marks with probe positions.
Image storage	Storage of up to 420 images.
Image management	View, open and delete images.
Cine loop	Cine loop of 246 images.
Measurements and calculations	Distance, backfat, circumference, area, volume, angle, heart rate, cycle, intramuscular fat content.
Obstetrical measurements and calculations	Determination of gestational weeks and expected date of birth in pigs, sheep, dogs and cats. Creation and management of obstetrical reports.

Additional Information

Water resistance: IPX4.
Languages: Chinese, English, French, Russian, Spanish, Portuguese, Polish.
Scanning mode: electronic convex array.
Power supply: 5200 mAh lithium battery, up to 5 hours of operation.
Weight: 1.1 kg.
Dimensions: 285 x 143 x 35 mm.

Package Contents

Main unit.
3.5 MHz convex probe.
Power adapter.
Carrying strap.
Leather protective case.
Sealed plastic box for storage and transportation.
Remote control.
Sunshade screen cover.

Strap	Leather case	3.5 MHz convex probe	Dust-proof silicone caps

Choose the KX5600L ultrasound machine to ensure accurate and efficient diagnostics in your farm.
