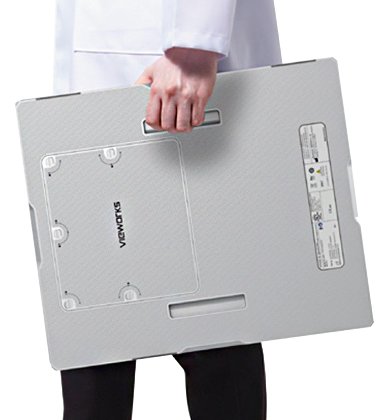

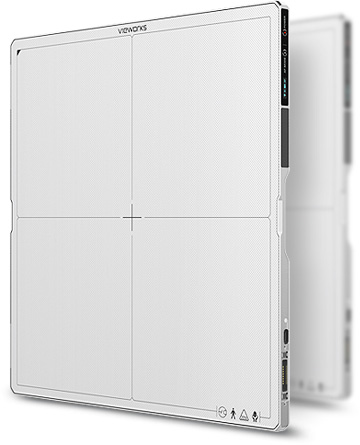

VIVIX-S 4343VW Wireless Flat Panel Detector for Veterinary 43x43cm

In stock
SKU: VIVIX-S 4343VW
Price upon request
Sign in
to add this item to wishlist
%
Sign in to see your personal discount
Request the price
Features
Brand Vieworks
Name VIVIX-S 4343VW Wireless Flat Panel Detector for Veterinary 43x43cm
Model Name FXRD-4343VAW
Technology a-Si TFT
Scintillator CsI
Pixel Pitch 140 ㎛
Spatial Resolution 3.5 lp/㎜
Pixel Matrix 3072 x 3072 pixels
Image Size 43.0 ㎝ x 43.0 ㎝
Grayscale 16 bits
Image Acquisition Time 3 s
Recommended Cycle Time 4 s
Data Interface Gigabit Ethernet, IEEE 802.11n / ac
X-ray Generator Interface DR trigger Mode, AED Mode
Dimensions 46.0 ㎝ x 46.0 ㎝ x 1.5 ㎝
Weight 3.45 kg (one battery), 3.65 kg (two batteries)
Battery Lithium Ion 3400mAh x 2
Dust and Water Resistant IP67
X-ray Voltage Range 40 - 150 kVp
Operating Environment: Temperature 0°C to 40°C
Operating Environment: Humidity 5 % to 90 % RH (non-condensing)
Normal Power Consumption Max. 24W
Charging Power Consumption Max. 80W
