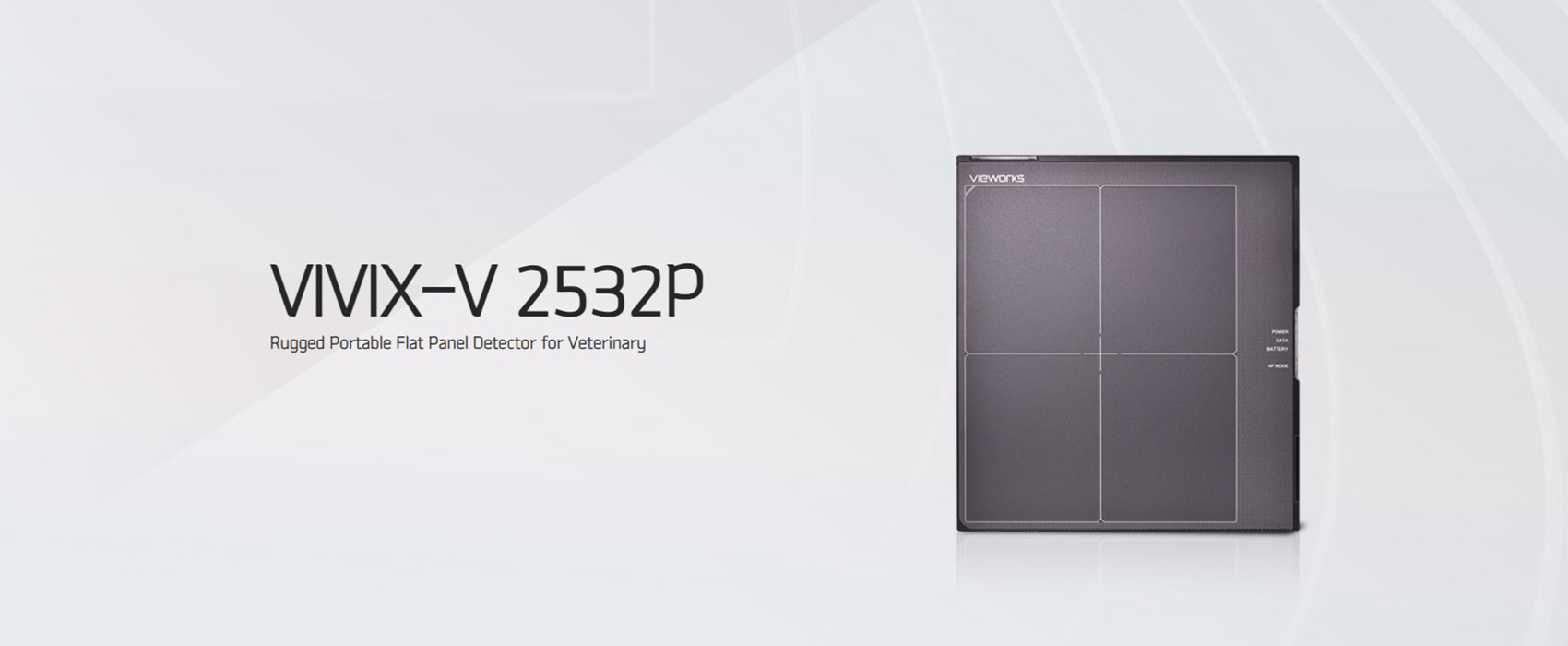

VIVIX-V 2532P Rugged Portable Flat Panel Detector for Veterinary

New

Video

Rate this item

Home

X-ray imaging

DR Panels

DR Panels Vieworks

VIVIX-V 2532P Rugged Portable Flat Panel Detector for Veterinary

In stock

SKU: VIVIX-V 2532P

Price upon request

Features

Brand	Vieworks
Name	VIVIX-V 2532P Rugged Portable Flat Panel Detector for Veterinary
Model Name	VXTD-2532EAW
Technology	a-Si TFT
Scintillator	CsI / Gadox
Pixel Pitch	124 ㎛
Spatial Resolution	4.0 lp/㎜
Pixel Matrix	2048 x 2560 pixels
Image Size	25.4 ㎝ x 31.7 ㎝
Grayscale	16 bits
Image Acquisition Time	Wired: 1.5 s / Wireless: 3 s
Data Interface	Gigabit Ethernet, IEEE 802.11n / ac
X-ray Generator Interface	DR trigger Mode, AED Mode
Dimensions	32.2 ㎝ × 35.5 ㎝ × 1.7 ㎝
Weight	2.5 kg
Dust and Water Resistant	IP67
X-ray Voltage Range	40 - 150 kVp
Operating Environment: Temperature	-20℃ to +50℃
Operating Environment: Humidity	30 % to 85 % RH (non-condensing)
Normal Power Consumption	DC 24 V, 0.8 A

Video


	Superior Image Quality High MTF & DQE Pixel Pitch: 124 ㎛
Excellent Durability IP67 Dust and Water Resistance: Protects against harmful dust Protects from immersion in water with a depth of up to 1 m for up to 30 min Temperature Stability: -20 degree Celsius to +50 degree Celsius
	Maximum Portability High Speed Wireless Transmission: 802.11ac Wide Wireless Coverage: 3 internal antennas Light and Slim Design: 2.5 kg Detachable Handle for Two Sides
Better Usability Short Bezel Size: 8.5 mm on each of the two sides for securing active area easily Hot-swappable Batteries: replace batteries without turning off the detector Dual Battery: operates up to 8 hours
